New Benchmark, Core Alignment Fusion Splicer

VIEW5

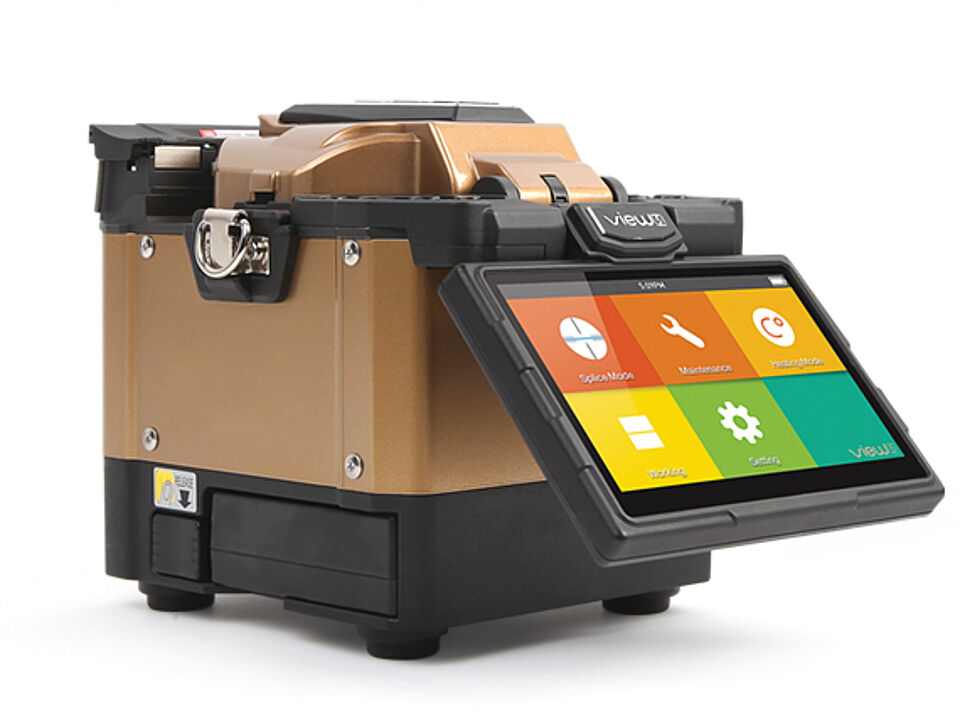

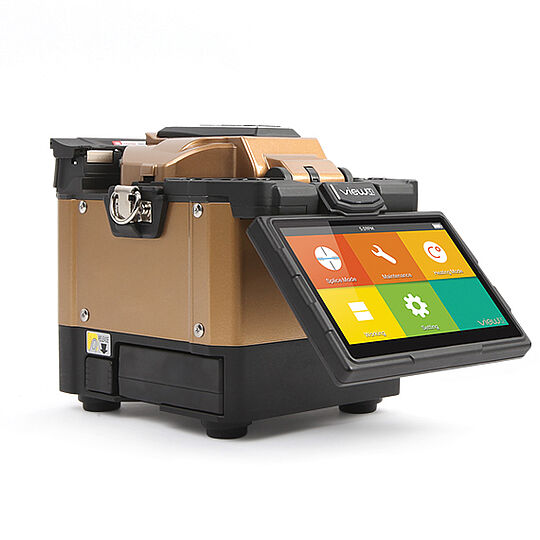

The high-magnification core alignment fusion splicer VIEW 5 provides fiber-optic enlargement for easy and intuitive operation. It has fast, powerful connectivity and innovative performance. VIEW 5 equipped with user-friendly GUI on a high-resolution color LCD allowing first time splicer users to easily connect the optical fiber. By double-tapping the screen, all users can see and zoom the optical fiber up to 520 times.

VIEW5, Exceptionally Convenient Core Alignment Fusion Splicer

Characteristics

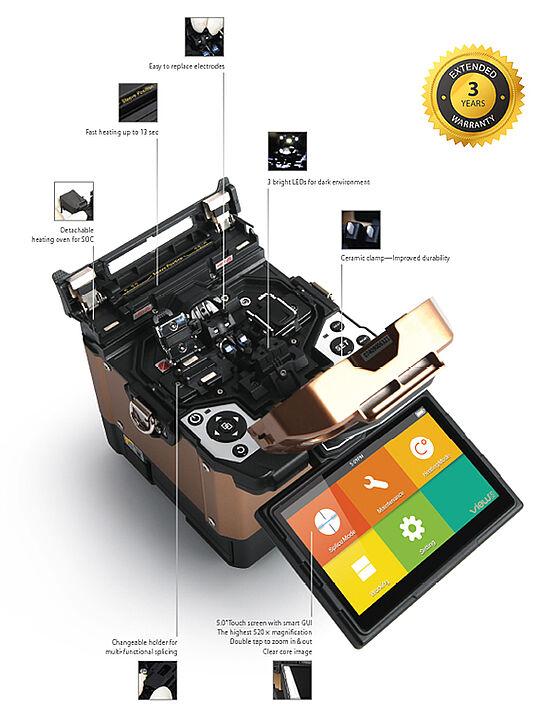

View 5, Performance-oriented structure

Shock resistance

Dust resistance

Water resistance

Display & Interface

High Visibility Optimized for Working Environment

5" High Resolution Touch Screen
 The highest 520X magnification
 User-friendly smart GUI





VIEW5

Specifications

Dimension

147H x 130W x 155D mm

Weight

1.85KG (without battery) /
2.21KG (with battery)

Display

Touch Screen / Button

Number of fiber

Single

Splicing time

Heating time

Fiber view & magnification

520X Magnification

Lightning

3 White LEDs

Result Storage
The last 10.000 results (Splice Data + Splice Image)
Terminal
USB 2.0 /MINI USB
Compatible Fiber / Cable
200µm - 3,0mm/Indoor Cable(with FH-40)
Cleaved Length
Diameter:0,125 - 1mm/Cleave Length:80 - 016mm
Cladding Diameter
80-150㎛
Splicing Mode
max. 128 modes
Heating Mode
max. 32 modes
Typical Splice Loss
SM: 0,02dB / MM: 0,01dB / DS: 0,04dB / NZDS: 0,04dB / G.657: 0,02dB(ITU-T Standard)
Return Loss
>> 60dB
Estimated Splice Loss
Available upon request.
Heating Sleeve Length
20 - 60mm
Tension Test
1,96 - 2,25N
Operating Condition
Operating Altitude: 0 - 5000m above sea level, 0.95% relative humidity, -10 - -50°C, Max Wind 15m/s
Storage Condition
0 - 95% relative humidity, -20 - 60°C
Power Supply
AC Input 100 - 240V, DC Input 9-14V
No. of Splice / Heating with Battery
4200mAh Battery Capacity, Typical 170 times (Splice+Heat)
Electrode Life
5500 arcs, can be extended by using an electrode grinder

Amazingly Compact, as You Dreamed Imagine the Lightness of VIEW5

PACKAGE
