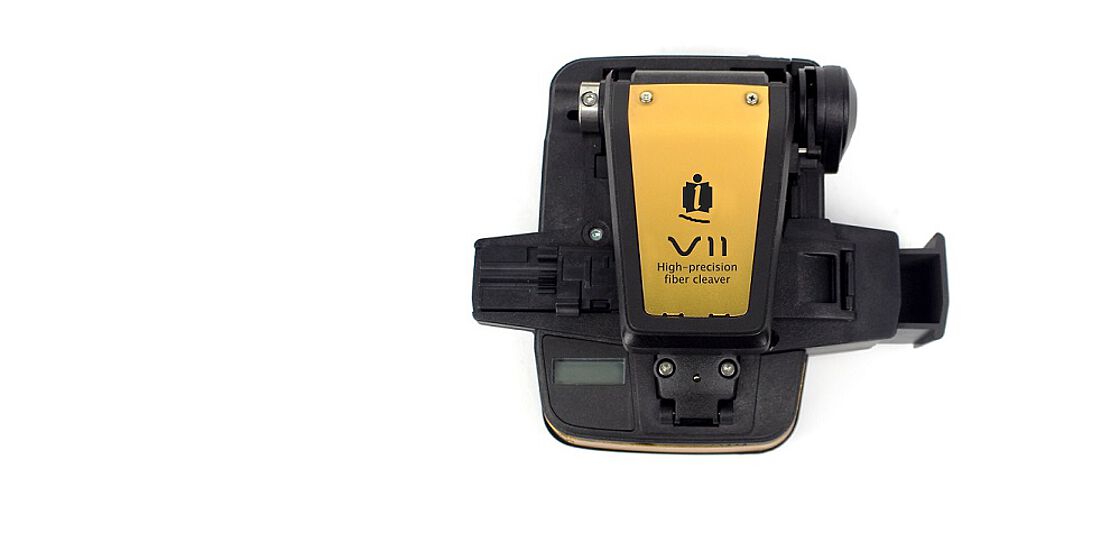

FULLY AUTOMATIC, HIGH PRECISION OPTIC FIBER CLEAVER

V11

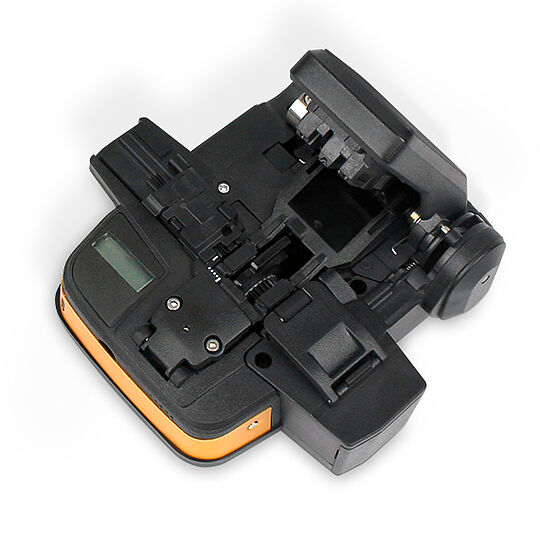

V11 aims to be the most accurate and advanced cleaver produced in the market. The cleaves are made in a single, swift action (One-step) with fully automatic blade rotation and height adjustment after each cleaves to ensure the best cleave results are produced. V11 is equipped with a universal holder, applicable to 250µm fiber cable, 900µm fiber cable, flat cable, ribbon fiber, and jumper cable. It also has an automatic collector for fiber shards and offcuts. Cleaving over 60,000 times, the V11 remains to be completely maintenance-free.

Blade and Digital Counter

•

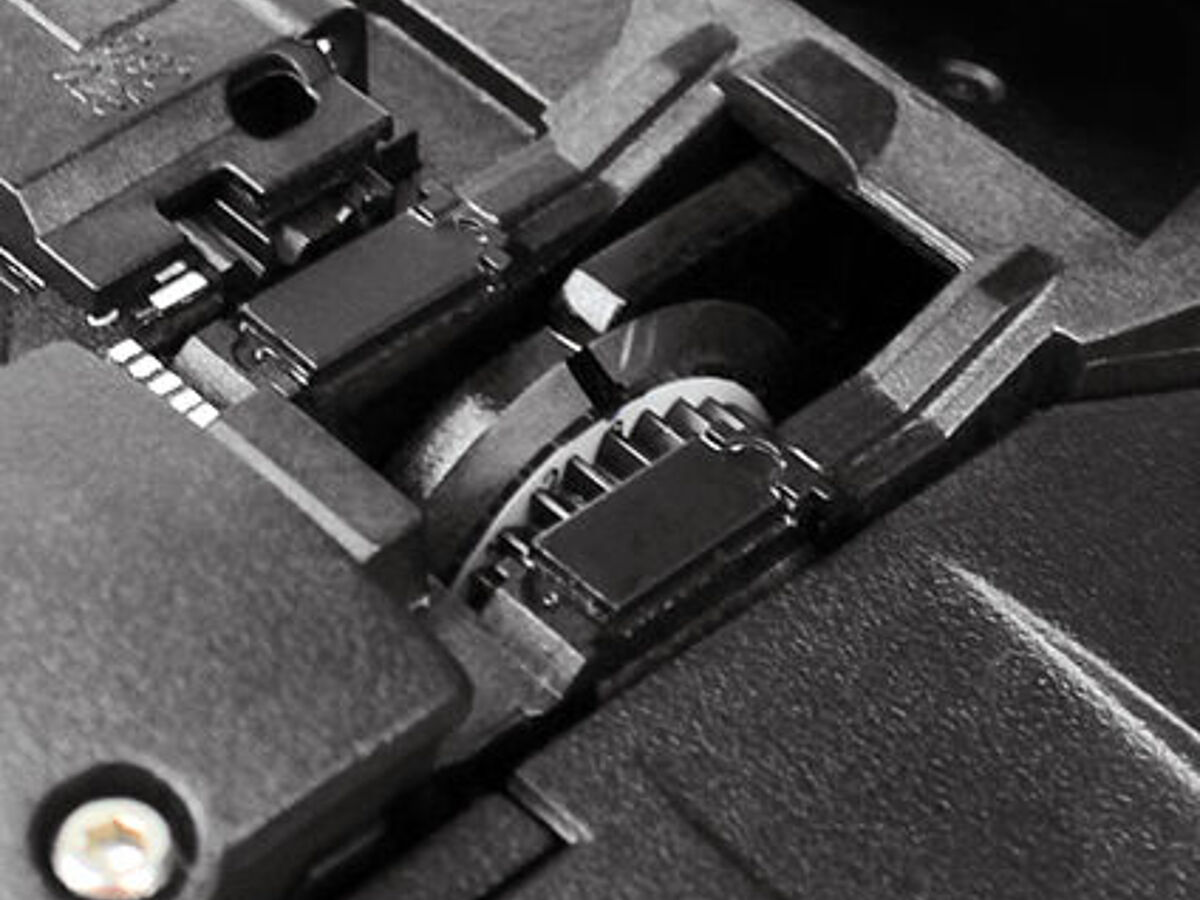

 Blade rotates automatically after each cleaves in 30 channels

•

 Cleave counts are indicated in real-time in a digital format

•

 Equipped with automatic shard collector

Dimensions

Cleaver V11
Height  Width Depth  Weight
52mm109mm105mm245 grams
Type
Single fiber and Ribbon fiber
Cladding Diameter
125µm
Cleaved Length
Single Fiber : 5mm ~ 24mm (Coating diameter ≤ 250µm)
Single Fiber : 10mm ~ 20mm (Coating diameter >250µm)
Ribbon (Multi) Fiber : 10mm
Applicable Fiber Cable
Single Fiber : 160µm to 900µm, 2mm ~ 3mm and drop cable
Ribbon (Multi) Fiber : 2 ~ 16 ribbon fibers
Typical Blade Life
Total 60,000 fiber cleaves (2,000 cleaving per each point, total 30 points)
Typical Cleaved Angle
Single Fiber : 0.3 ° ~ 0.8 °
Ribbon (Multi) Fiber : 0.3 ° ~ 1.0 °
Holder
Universal holder, Replaceable holder
Weight
245g (with Auto Trashbin) / 220g (with Side Cover)
Dimension
105L x 109W x 52H mm (with Auto Trash Bin) / 87L x 105W x 52H mm (with Side Cover)
Operation Condition
Temperature: -10 ~ 50 ºC / Humidity: 0 ~ 95%RH (non-dew)
Storage Condition
Temperature: -40 ~ 80 ºC / Humidity: 0 ~ 95%RH (non-dew)
Battery
Coin type Lithium battery CR1220

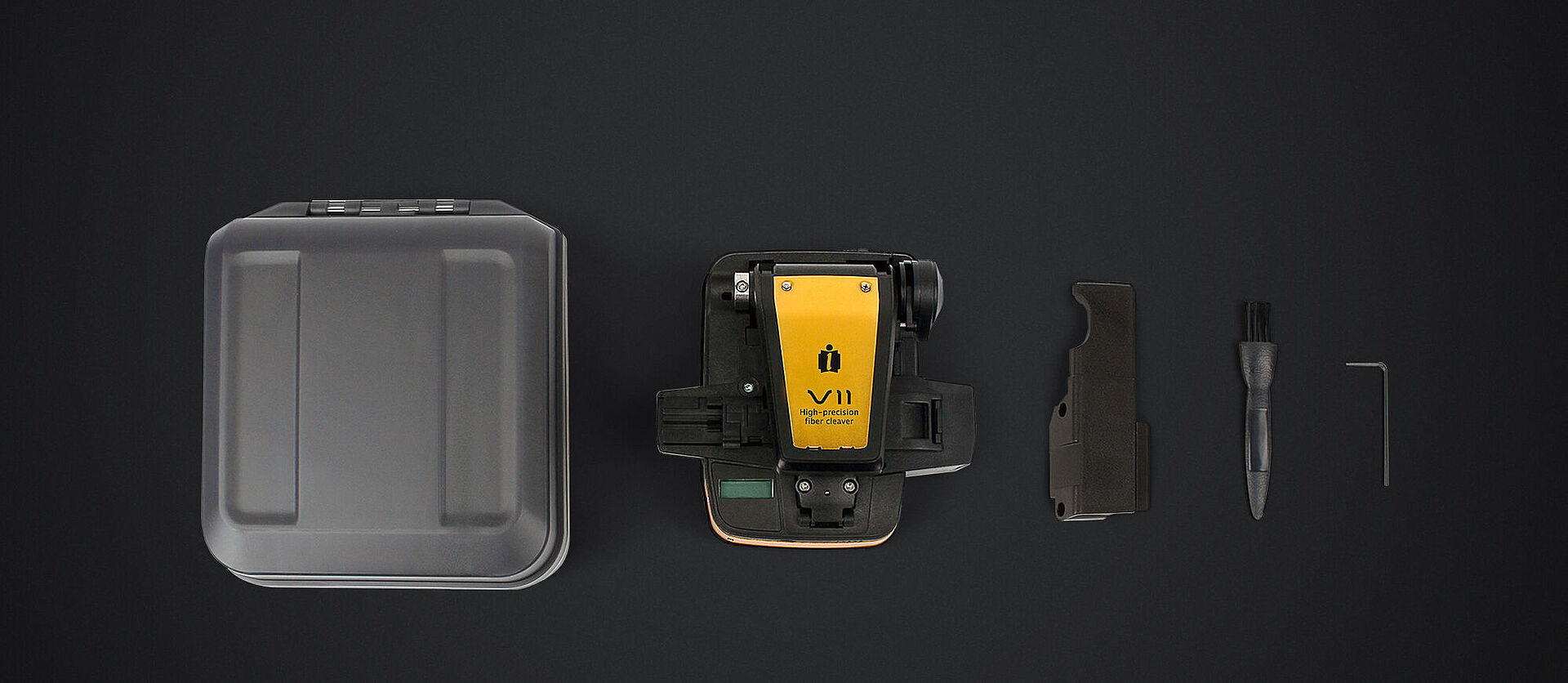

Package
