Modular OTDR with High Performance

View 600

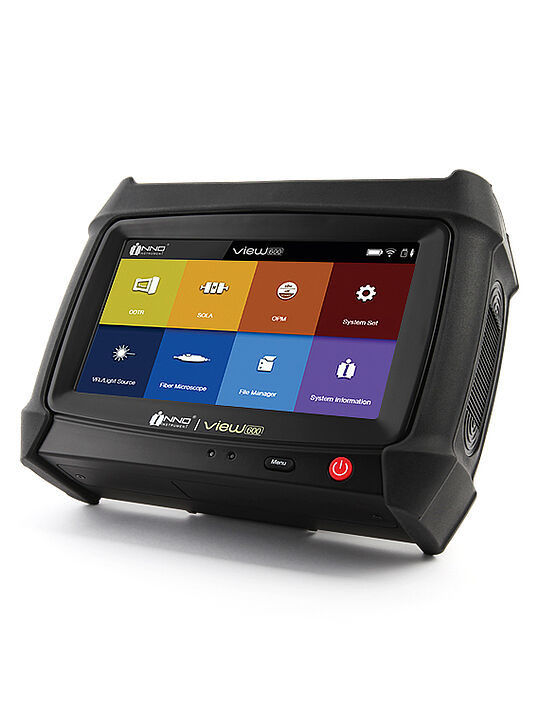

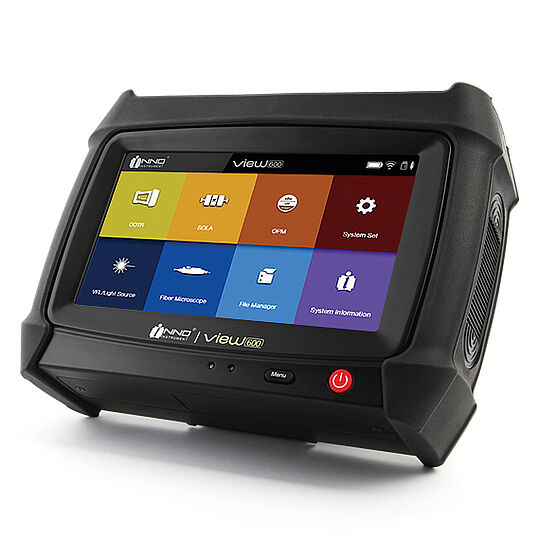

INNO Instrument proudly introduces VIEW600, a truly modular OTDR with 13 applicable modules, supporting last-mile, access network, FTTx/PON, metro networks. VIEW600 boasts qualified CPU, fast response time, capacitive touch screen, user-friendly GUI, and above all, accurate test result. We guarantee that you can seamlessly test your networks with this changable smart gear.

Characteristics

VIEW600

Features

OTDR

OTDR-mode enables you to measure distance, loss, reflectance, attenuation, ORL, and sum on an optical fiber. When operating Auto-mode, the test is automatically done without additional settings. The test results can be stored in 3 types of format (image, SOR, PDF)

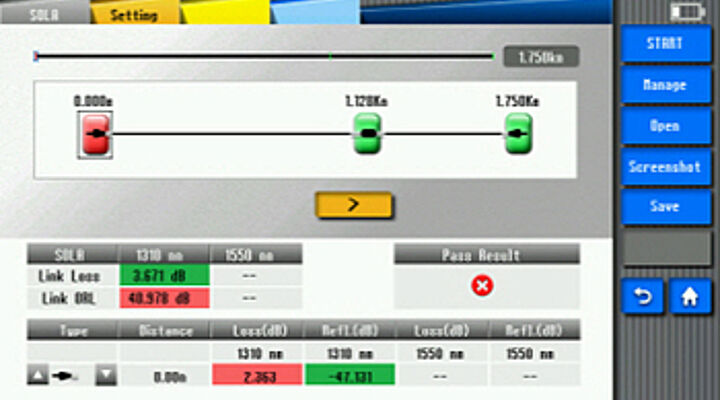

SOLA

SOLA (Smart Optical Link Analyzer), an application that simplifies the measuring process, shows you accurate test results by utilizing an advanced algorithm and optimal multiple pulse width. You don't have to set complicated parameters, which means even unskilled workers can make measurements with great ease.

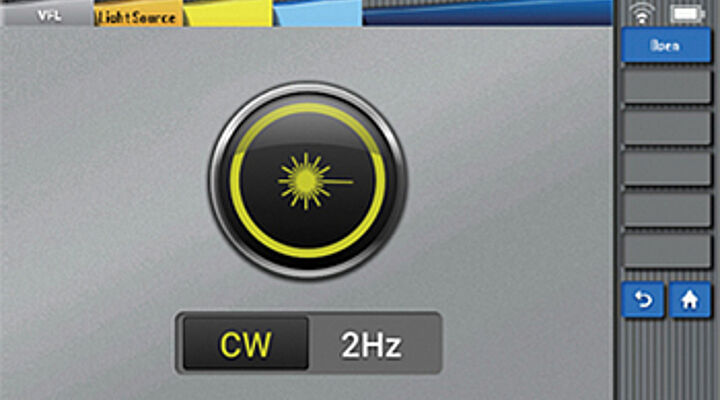

VFL

VFL (Visual Fault Locator) visually identifies the location of bending point, faulty connector, or splicing point by emitting a bright red laser (it can reach a maximum of 10km), and this is a must function that workers need on the field.

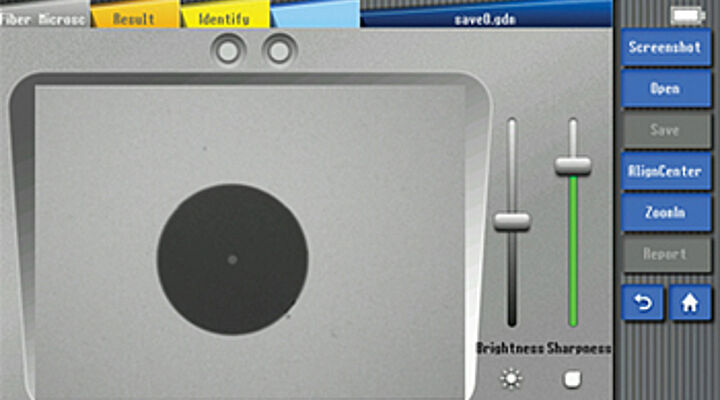

Fiber Microscope

Testing fiber end face on connectors with FIBER MICROSCOPE is very important because a polluted or damaged connector can cause critical damage to test results as well as testing ports.

OPM

OPM (Optical Power Meter) is used for accurately measuring optical power on fiber optic networks operating at 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1610nm and 1625nm.

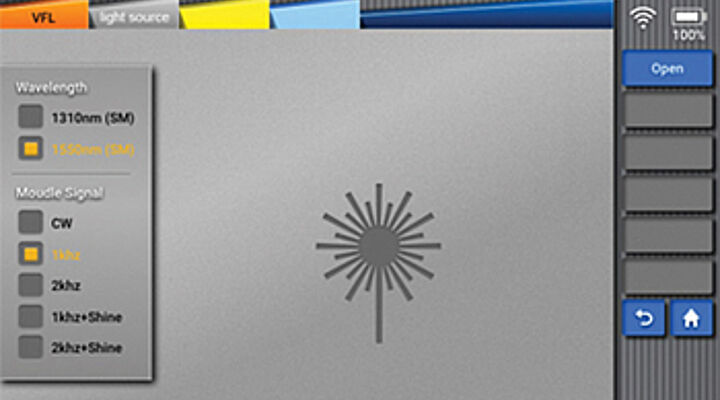

Light Source

The invisible light source (1310/1550nm) can provide the following sources of light: CW, 1kHz, 2kHz modulated, and 1kHz & 2kHz blinking.

Display and Interface

High visibility for the highest professional applications

The Optimized 7 inch high-resolution Color LCD Touch Screen
 Maximal 800 × 480  magnification
 Smart GUI



Connections

Modular OTDR

13 Modules are applicable.

APC Connector

To improve the testing efficiency and optimize the OTDR function, APC connector is recommended to be applied and connected with SM port of VIEW600, due to low reflectance caused by it. The reflection coefficient is the key parameter that will affect the OTDR performance and especially the dead zone. (The performance of the APC connector is better than that of the UPC connector).

VIEW600

Specifications

Dimension

159H x 218W x 70D mm
(excluding rubber bumper)

Weight

1,70 kg (with battery)

Display

High Brightness TFT LCD /
Resolution of 800×480

Dynamic Range

39dB / 38dB / 39dB
(1310 / 1550 / 1625LP)

Operating Time

Up to 12hours
